SPG2022 – Page 7

Today’s details of products and warnings: Midland, TX

Posted in GLM, PHSnMWnABI, ProbSevere, SPG2022 on June 24, 2022 by Kevin Thiel.

I found the PHS products useful for seeing the corridors of enhanced severe risk. They correctly showed that hail (or wind) was the highest risk compared to tornadoes.

ProbSevere was very useful with the trend lines. Again and again correctly identified risks as they occurred.

GLM showed strong ramp ups in activity prior to each severe issuance. No complaints here.

NUCAPS data was less useful, but with the skew-t pop up I was able to correctly see areas of mid level dry air. I did not use optical flow. Prob lightning was useful to see the first cells pop up but did not serve as much purpose after that with no known DSS opportunities.

Some Random Guy

Observations and DSS for Fort Worth, TX

Posted in SPG2022 on June 24, 2022 by Kevin Thiel.

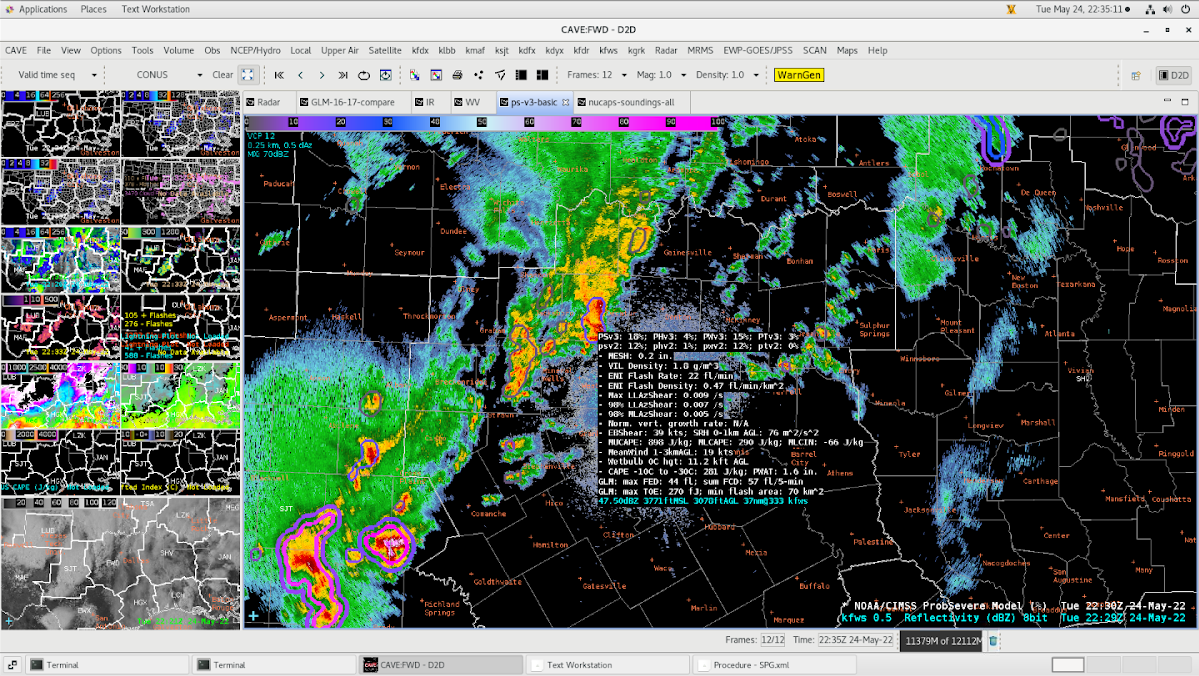

AWIPS radar display over Texas. Synopsis – An upper level storm system and a cold front will bring a chance of showers and thunderstorms this afternoon and evening over the Forth Worth, TX area. Some storms could be severe with damaging winds and hail. Activity should exit to the southeast late tonight or early Wednesday morning.

VIS: Storms initiating in the NM/TX border. Anticipating a line of storms to develop along western TX and pushing southeastward.

Infrared.

DSS: Colonial Country Club – Charles Schwab Tournament – Forth Worth, TX

AWIPS radar display over Texas.

SPC Mesoanalysis: CAPE values of 2500+ J/kg, setting the stage for active convection this evening over much of TX.

SPC gives an enhanced risk of severe thunderstorms across parts of TX.

VIS @ 22Z: Storms maturing quite well in SJT.

Issued another DSS update about the likelihood of lightning passing over the property.

Polygon warning.

ProbSevere 3.

Vortex Power

Fort Worth ProbSevere

Posted in ProbSevere, SPG2022 on June 24, 2022 by Kevin Thiel.

21:47Z: The 21:47 UTC Prob Severe with MRMS overlaid gave us situational awareness on where to focus our attention for severe storms. It highlighted two big cells southwest of our CWA, where the ProbSevere values approached 80 and 93%, respectively. The storm closest to our CWA had a 50 kt inbound velocity on the lowest scan.

Snowfan

Fort Worth NUCAPS

Posted in NUCAPS, SPG2022 on June 24, 2022 by Kevin Thiel.

21:19Z: There was a NUCAPS passover around 1930Z over the Fort Worth area. One sounding in our southern CWA showed this:

The sounding showed MLCAPE of around 1500-1600 J/kg, with DCAPE values in excess of 1000 J/kg. Compared to the SPC meso page, these values agree quite well:

Snowfan

Fort Worth Optical Flow

Posted in Optical Flow Winds, SPG2022 on June 24, 2022 by Kevin Thiel.

20:45Z

Optical Flow winds indicate a broad south-southwesterly flow at mid-levels.

Snowfan

Fort Worth PHS

Posted in PHSnMWnABI, SPG2022 on June 24, 2022 by Kevin Thiel.

20:10Z: The PHS is showing a very unstable environment along/south of the outflow boundary, stretching southwest to northeast across the Fort Worth CWA. Temperatures are in the 80s south of the boundary with upper 60s to lower 70s dewpoints. North of this boundary, temperatures are in the lower 60s with lower 60s dewpoints.

Over time, close to 00-01Z, the boundary slides south and east toward the southern portion of the CWA, with SBCAPE over 2000 J/kg, STP values upwards of 3-5 (perhaps picking up on the better curved hodographs along the mesoscale boundary), and LI values approaching -8 to -10. The CAPE seems to match up very well with that seen on the SPC meso page. The SPC meso page had a higher STP southwest of our CWA at this time. This product helped me to focus on regions where new convection would likely form, good for situational awareness.
