Well… unfortunately, my first crack at this tool has not gone well. When I initially pulled up the tool, it looked fine but then at some point, I had closed the Tracking Meteogram tab and could not figure out a way to pull it back up without reloading it all over again. I consulted with folks and we could not figure out how to bring a closed tab back up. It is unfortunate because I had already created a track and my points so I had to redo it.

Another problem I ran into was when the tab was opened, the meteogram would sporadically go blank/missing. Additionally, I received constant red banners that said An internal error occurred during: “Loading Tracking Meteogram.,” whether the meteogram was visible or missing. Lastly, I was testing the meteogram with KDVN 0.5 Z/V products and the Z meteogram did not line up temporally with V. Every time a new radar scan would come in, the V meteogram would update with the latest scan but the Z meteogram increased in the amount of points on the x-axis without accurately or correctly updating the time (x-axis)/max reflectivity value (y-axis).

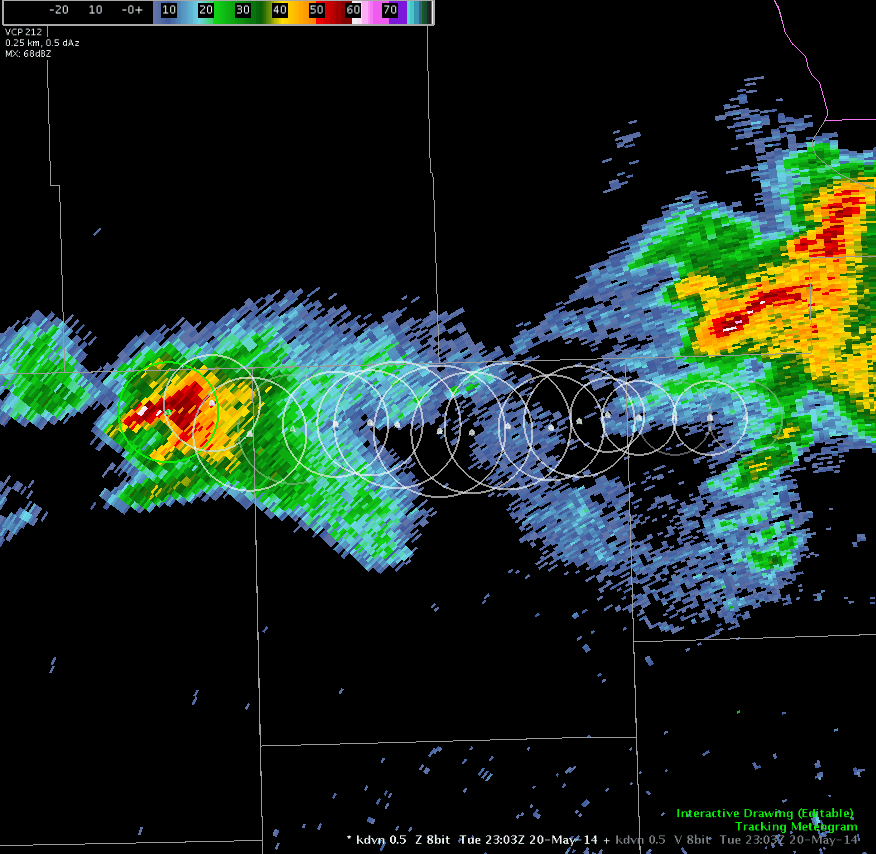

I do like the ability to move individual points (instead of the entire line like with similar tracking tools in AWIPS-I) and it was interesting to be able to increase/decrease the circle size to capture certain storm features. I also like the capability that it has to offer to be able to see trends laid out in graph form for a particular product or set of products.

~Linda
